s8 ov 210 - Tech Specs
Finishing
Materials
Painted metal structure with pendants
Light source
Traditional:
8XE12X40W
Led 3000k:
UP: 15,6W CRI>95 3000K - 1536 nominal LM DOWN: 70,2W CRI>95 3000K - 6912 nominal LM
Led 2700k:
UP: 15,6W CRI>95 2700K - 1464 nominal LM DOWN: 70,2W CRI>95 2700K - 6588 nominal LM
Dimming control
Standard:
TRIAC ONLY WITH DIMMABLE BULBS
Led:
0-10 V
Dimensions
| H | 20 cm | 7.87'' |
|---|---|---|
| D | 20 cm | 7.87'' |
| W | 210 cm | 82.67'' |
Certifications
Traditional Light:
Led Light:
s6 ov 160 - Tech Specs
Finishing
Materials
Painted metal structure with pendants
Light source
Traditional:
6XE12X40W
Led 3000k:
UP: 10,4W CRI>95 3000K - 1024 nominal LM DOWN: 50,7W CRI>95 3000K - 4992 nominal LM
Led 2700k:
UP: 10,4W CRI>95 2700K - 976 nominal LM DOWN: 50,7W CRI>95 2700K - 4758 nominal LM
Dimming control
Standard:
TRIAC ONLY WITH DIMMABLE BULBS
Led:
0-10 V
Dimensions
| H | 20 cm | 7.87'' |
|---|---|---|
| D | 14 cm | 5.50'' |
| W | 160 cm | 63.00'' |
Certifications
Traditional Light:
Led Light:
s4 ov 100 - Tech Specs
Finishing
Materials
Painted metal structure with pendants
Light source
Traditional:
4XE12X40W
Led 3000k:
UP: 5,2W CRI>95 3000K - 512 nominal LM DOWN: 25,35W CRI>95 3000K - 2496 nominal LM
Led 2700k:
UP: 5,2W CRI>95 2700K - 488 nominal LM DOWN: 25,35W CRI>95 2700K - 2379 nominal LM
Dimming control
Standard:
TRIAC ONLY WITH DIMMABLE BULBS
Led:
0-10 V
Dimensions
| H | 20 cm | 7.87'' |
|---|---|---|
| D | 13 cm | 5.12'' |
| W | 100 cm | 39.37'' |
Certifications
Traditional Light:
Led Light:

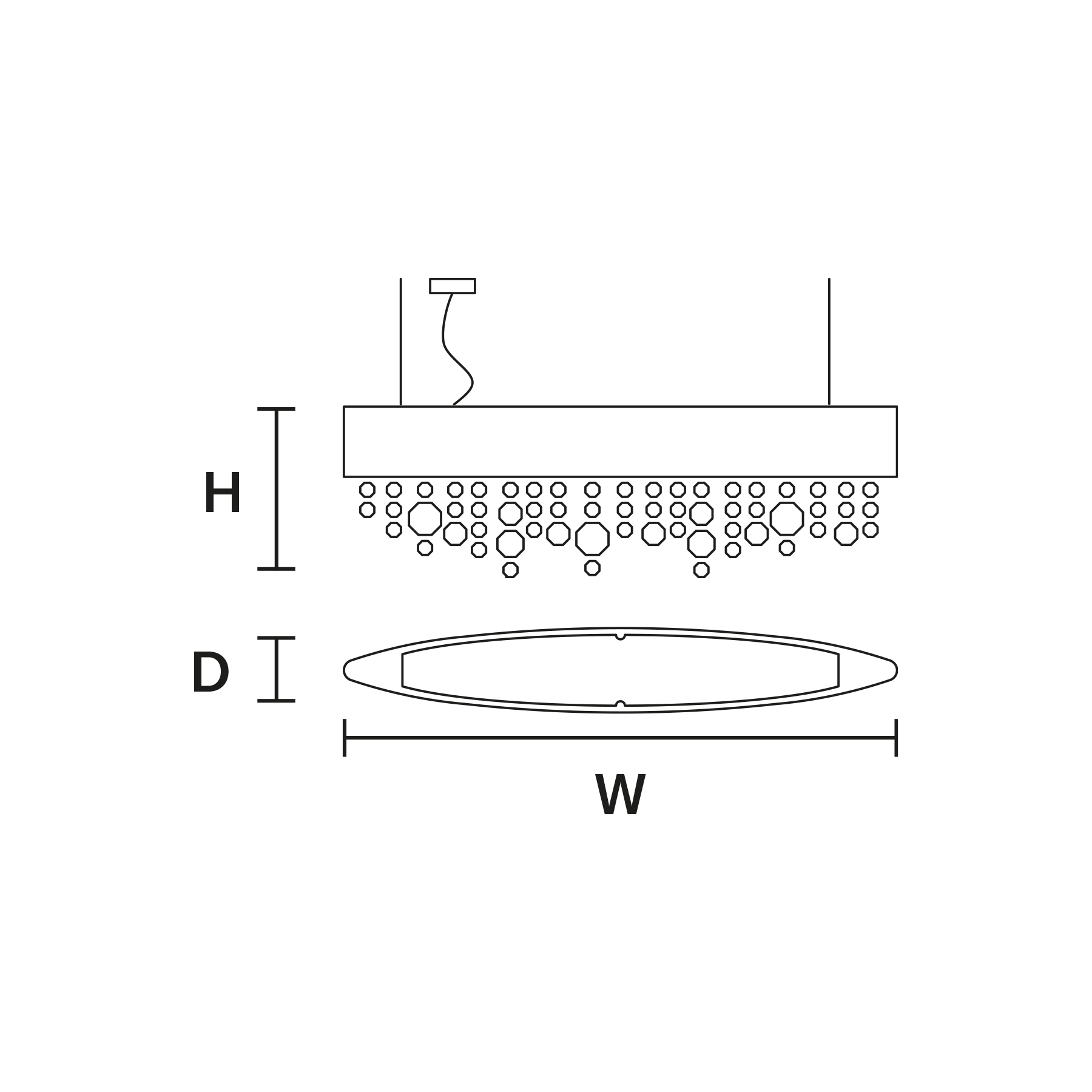

s2 ov 50 - Tech Specs
Finishing
Materials
Painted metal structure with pendants
Light source
Traditional:
2XE26X60W
Led 3000k:
UP: 5,2W CRI>95 3000K - 512 nominal LM DOWN: 7,8W CRI>95 3000K - 768 nominal LM
Led 2700k:
UP: 5,2W CRI>95 2700K - 488 nominal LM DOWN: 7,8W CRI>95 2700K - 732 nominal LM
Dimming control
Standard:
TRIAC ONLY WITH DIMMABLE BULBS
Led:
NO
Dimensions
| H | 18 cm | 7.09'' |
|---|---|---|
| D | 8 cm | 3.14'' |
| W | 50 cm | 19.69'' |
Certifications
Traditional Light:
Led Light:
s1 ov 30 - Tech Specs
Finishing
Materials
Painted metal structure with pendants
Light source
Traditional:
1XE12X40W
Led 3000k:
UP: 4W CRI>95 3000K - 390 nominal LM DOWN: 4W CRI>95 3000K - 390 nominal LM
Led 2700k:
UP: 4W CRI>95 2700K - 375 nominal LM DOWN: 4W CRI>95 2700K - 375 nominal LM
Dimming control
Standard:
TRIAC ONLY WITH DIMMABLE BULBS
Led:
NO
Dimensions
| H | 18 cm | 7.09'' |
|---|---|---|
| D | 7 cm | 2.75'' |
| W | 30 cm | 11.81'' |
Certifications
Traditional Light:
Led Light:
